The tools used when using rivets include manual rivet guns and pneumatic rivet guns. The manual rivet gun is operated by workers with both hands. First, the rivet gun is swung open, and then the rivet is inserted into the rivet gun. Align the part that needs to be anchored, and close the rivet gun to achieve the anchoring effect. The pneumatic rivet gun is operated by one hand, and now the suction rivet gun is fast. When using a rivet gun, pay attention to safety. The precautions for rivet guns include:
1. The diameter of the rivet hole should be about 0.10mm larger than the rivet diameter. If it is too small, it will affect the connection strength , and it is difficult for the rivet to penetrate.
2. When riveting, the hole diameter of the riveting gun head should be selected based on the diameter of the core rod, the direction of the catheter should be adjusted appropriately, and the nut should be used to lock it tightly, so that the core rod can freely pierce into the pull clamp of the catheter. Then, the rivet should be inserted into the nail hole, and the trigger button should be pressed to break the core rod and complete the riveting.
3. When selecting rivets, it is also necessary to pay attention to the following points: when drilling rivet holes, the aperture should be straight with the surface of the workpiece; When using riveting for inspection, it is necessary to align the axis of the riveting inspection with the axis of the rivet hole and not tilt it. During riveting, the riveting gun should be slightly pressed with force to make the rivet tail tightly adhere to the surface of the workpiece.

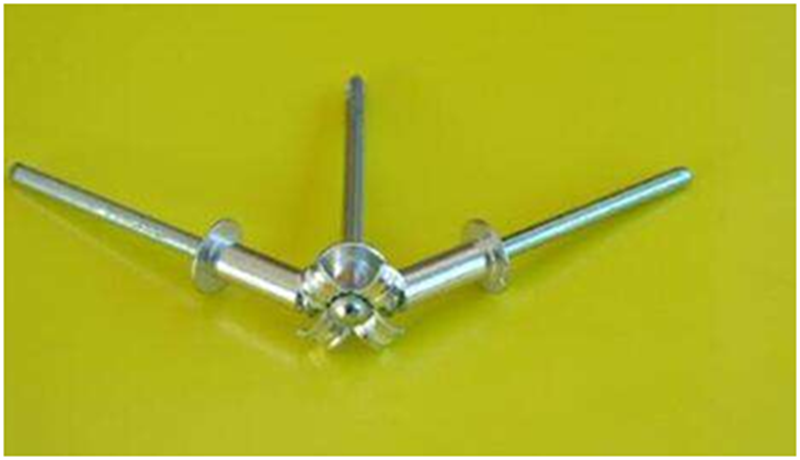

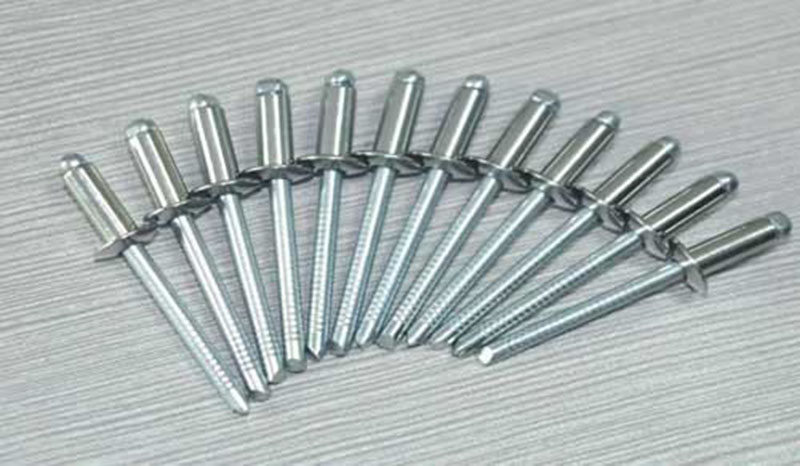

When using pull rivets, one side should hold the rivet and the other side should be tapped, and only through the hole can be riveted. And pulling rivets does not need to be pressed, they can be pressed directly, and blind holes can also be riveted. Before using a rivet to join the workpiece, it is necessary to choose a suitable rivet. Select the same material pulling nail according to the workpiece material: for general material joints, open type round head pulling nails are used; When the surface of the workpiece is required to be smooth, use countersunk rivets; In places containing acid and other Corrosive substance, stainless steel pull nails shall be used.
