Open Alum Steel Blind Pop Rivets

Short Description:


Product Detail

Product Tags

Open Alum Steel Blind Pop Rivets

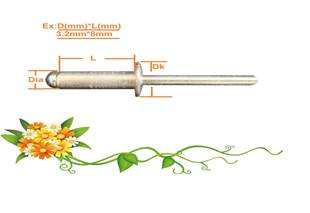

image001What is Open Alum Steel Blind Pop Rivetsl?

Rivet is one kind of fastener ,It can connect and fasten two objects .

Rivet is made up of two parts .Rivet body and rivet mandrel .

What material is Open Alum Steel Blind Pop Rivets?

It can be made with aluminum. steel ,stainless steel .copper.

How to chooseOpen Alum Steel Blind Pop Rivets?

Yes, It make confused to choose which blind rivet.

1,You need confirm objects thickness ,Then choose proper rivet range .”L”

2.Choose better rivet diameter for Drill diameter.”D”

3.You maybe feel doubt of material  ,Generally speaking, It is according to your objects .If steel objects, You can choose steel material rivet .If stainless steel material ,You can choose stainless steel blind rivet etc. Of course , Some professional people can have better choice with professional technology.

Quick Details

Material: Alu/Steel.
Certification: ISO, GS, RoHS,
Item: Blind Rivets With Break Pull Mandrel
OEM: Accept
Surface treatment: Polishing/Zinc plated

Our company.

we have a complete and scientific quality management system. and our company has strong technical force with CNC milling compound processing equipment and advanced cold pier equipment. With upholding the responsibility, integrity, enterprising, rigorous business philosophy, our product quality and production capacity are widely recognized in the Chinese market. At present,we cooperate with numbers of export fastener traders to provide high-quality non-standard custom products. According to customers’ drawings, we provide products to meet their needs.




MATERIAL

FINISH





texture of material

surface treatment



RIVET BODY

5050ALU

POLISH



Rivet body

5050aluminium

polishing



STEM

STEEL

ZINC PLATED



Nail core

iron

Galvanized











D

Dill  No.

Grip  Range

L (max)

Dk

k

d1

Shear

Tensile

nom

mm

mm

mm

nom(mm)

max(mm)

min(mm)

N

N

2.4mm

2.5-2.6

0.5-3.2

6.4

4.8

0.81

25

180

280

3.2-6.4

9.5

6.4-9.5

12.7

3.2mm

3.3-3.4

0.5-1.6

5.4

6.4

1.02

25

400

500

1.6-3.2

7

3.2-4.8

8.6

4.8-6.4

10.2

6.4-7.9

11.7

7.9-9.5

13.3

9.5-12.7

16.5

12.7-15.9

19.7

4.0mm

4.2-4.2

0.5-3.2

7.6

7.9

1.27

27

800

1000

3.2-4.8

9.2

4.8-6.4

10.8

6.4-9.5

14

9.5-12.7

17.1

12.7-15.9

20.3

22.2-25.4

29.8

4.8mm

4.9-5.0

0.5-3.2

8.3

9.5

1.52

27

1160

1400

3.2-4.8

9.8

4.8-6.4

11.4

6.4-9.5

14.6

9.5-12.7

17.8

12.7-15.9

21

15.9-19.1

24.1

19.2-22.2

27.3

22.2-25.4

30.5

25.4-29.6

33.7

31.8-34-.9

40

6.4mm

6.5-6.6

0.5-3.2

9.5

12.7

2.03

27

2000

2500

3.2-6.4

12.7

6.4-9.5

15.9

9.5-12.7

19.1

12.7-15.9

22.2

15.9-19.1

25.4

19.2-22.2

28.6

22.2-25.4

31.8

25.4-28.6

34.9

Stock.

We prepare stock under Current status of coronavirus .

Delivery

By sea or by air,
